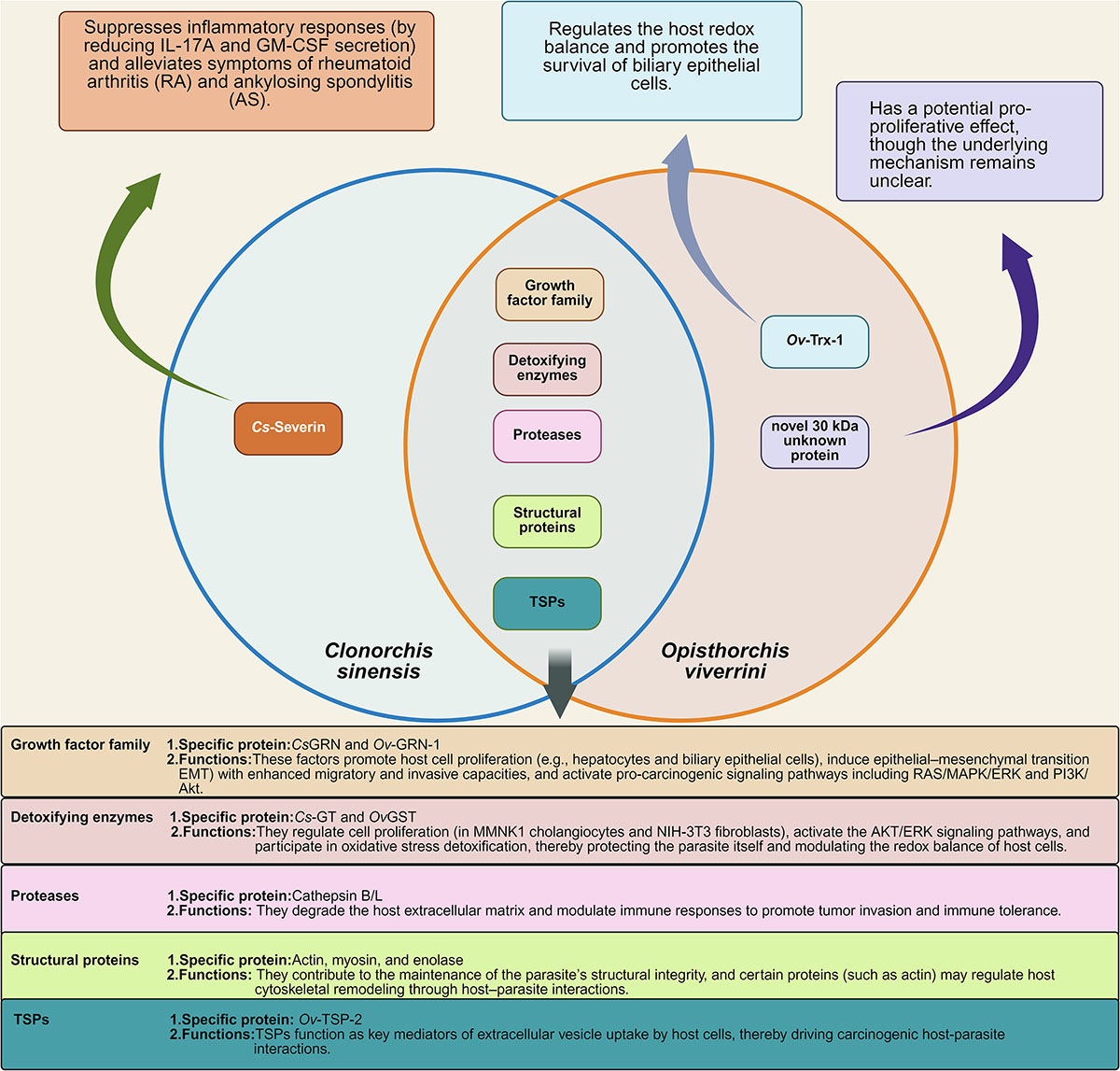

Figure 4
Download original image
Similarities and differences in ESPs between O. viverrini and C. sinensis. It compares the shared and unique components in the ESPs of O. viverrini and C. sinensis, including growth factor-like proteins, cysteine proteases, and immunomodulatory proteins, highlighting their potential differential roles in carcinogenesis. IL-17A: Interleukin-17A, GM-CSF: Granulocyte-Macrophage Colony-Stimulating Factor, RA: Rheumatoid Arthritis, AS: Ankylosing Spondylitis, TSPs: Tetraspanins, Ov-Trx-1: O. viverrini Thioredoxin-1, CsGRN: Clonorchis sinensis Granulin, Ov-GRN-1: O. viverrini Granulin-1, Cs-GT: Clonorchis sinensis Glutathione Transferase, OvGST: O. viverrini Glutathione S-Transferase, MMNK1: Human cholangiocyte cell line, NIH-3T3: Mouse embryonic fibroblast cell line, AKT: Protein Kinase B, RAS: Rat Sarcoma virus gene, MAPK: Mitogen-Activated Protein Kinase, PI3K: Phosphoinositide 3-Kinase, Ov-TSP-2: O. viverrini Tetraspanin-2.
