Figure 27

Download original image

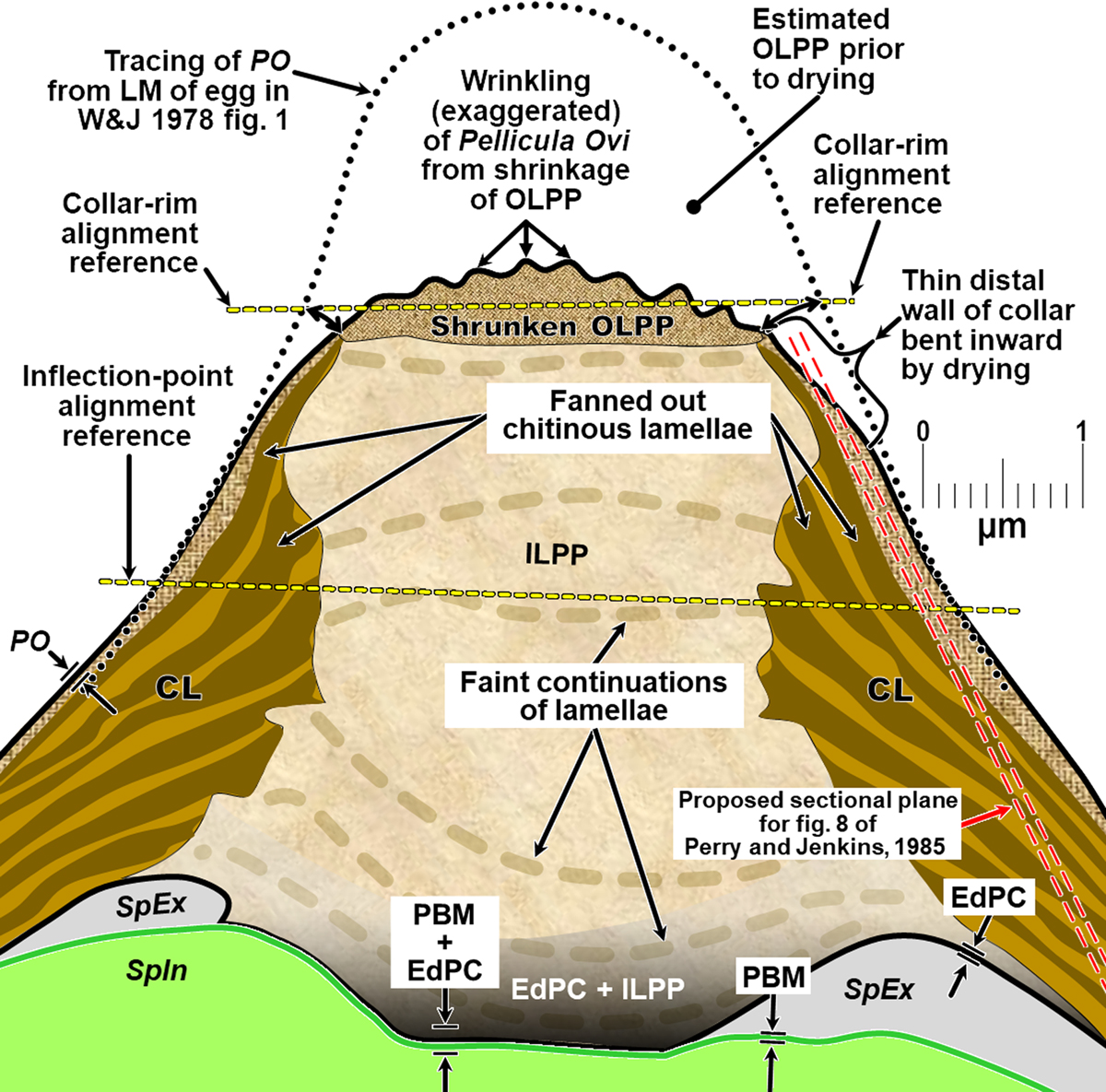

Interpretive tracing of a TEM sagittal of the polar plug of Trichuris suis from fig. 6 of Wharton and Jenkins (1978) [120], overlaid with an outline tracing (square dots) of a photomicrograph of an egg from their fig. 1, isometrically scaled to the same size. See Figure 2 for abbreviations and Section 4.7.3 for details on the double-dashed line.
