Figure 7


Download original image

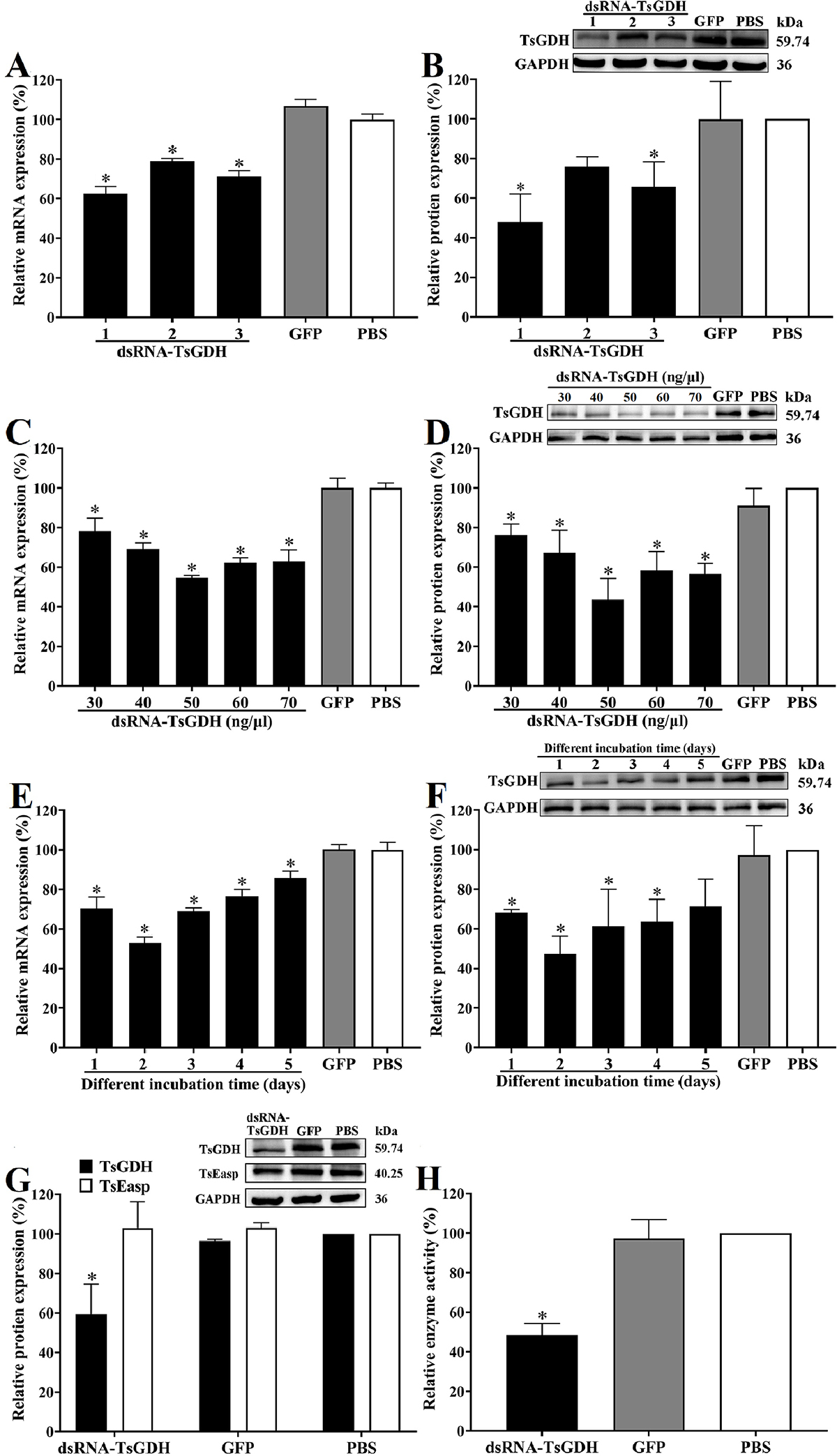

Silencing TsGDH gene suppressing TsGDH expression and enzymatic activity. A: TsGDH transcription levels in ML transfected with different dsRNA-TsGDH. B: TsGDH expression levels in ML transfected with different dsRNA-TsGDH. C: TsGDH transcription levels in ML transfected with various doses of dsRNA-TsGDH. D: TsGDH expression levels in ML transfected with various doses of dsRNA-TsGDH. E: TsGDH transcription levels in ML at 1–5 days after transfection with 50 ng/μL dsRNA-TsGDH. F: TsGDH expression levels in ML at 1–5 days after transfection with 50 ng/μL dsRNA-TsGDH. G: Expression levels of TsGDH and TsEasp in ML treated with dsRNA-TsGDH. H: TsGDH enzyme activity in ML treated with dsRNA-TsGDH. *p < 0.05 relative to the PBS group.
