Figure 3a


Download original image

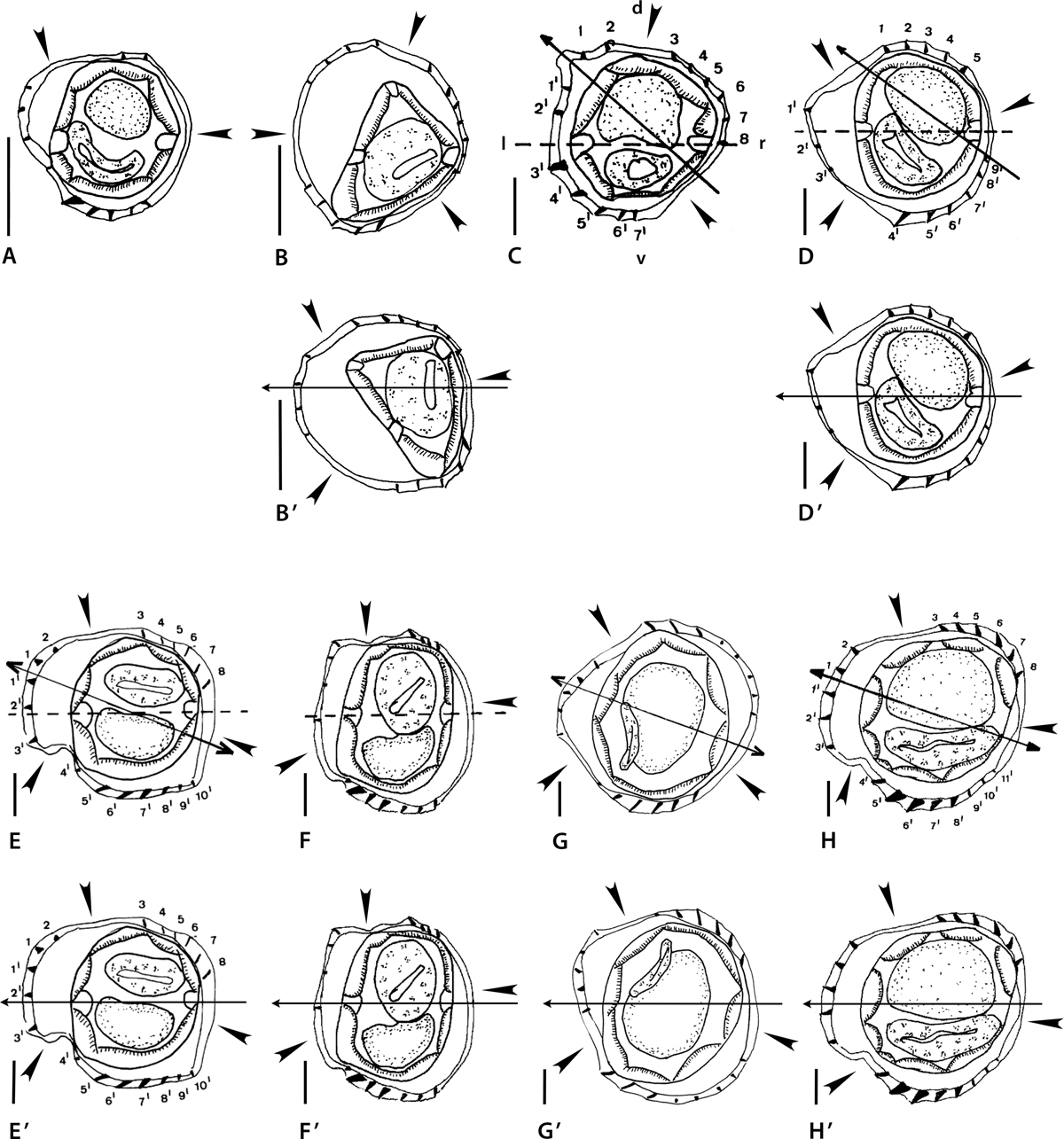

Montistrongylus Smales & Heinrich, 2010. Body sections. A–D’ Montistrongylus ingati Smales & Heinrich, 2010. A–B’ within proximal body. A male, B, B’ female. C–D’ at midbody. C male, D, D’ female. E–H’ Montistrongylus giluwensis Smales, 2011. E, F within proximal body. E male, F female. G–H’ at midbody. G, G’ male, H, H’ female. Sources: A, D redrawn from [45]; E–H redrawn from [33]. B’, D’, G’, H’ modified figures: B’ rotated ca. 75° counterclockwise with respect of the original. D’–H’ reinterpreted orientation of the axis (subfrontal). G’ reversed on its frontal axis then rotated 30° clockwise with respect to the original. H’ rotated ca. 10–20° counterclockwise with respect to the original.
