Figure 10


Download original image

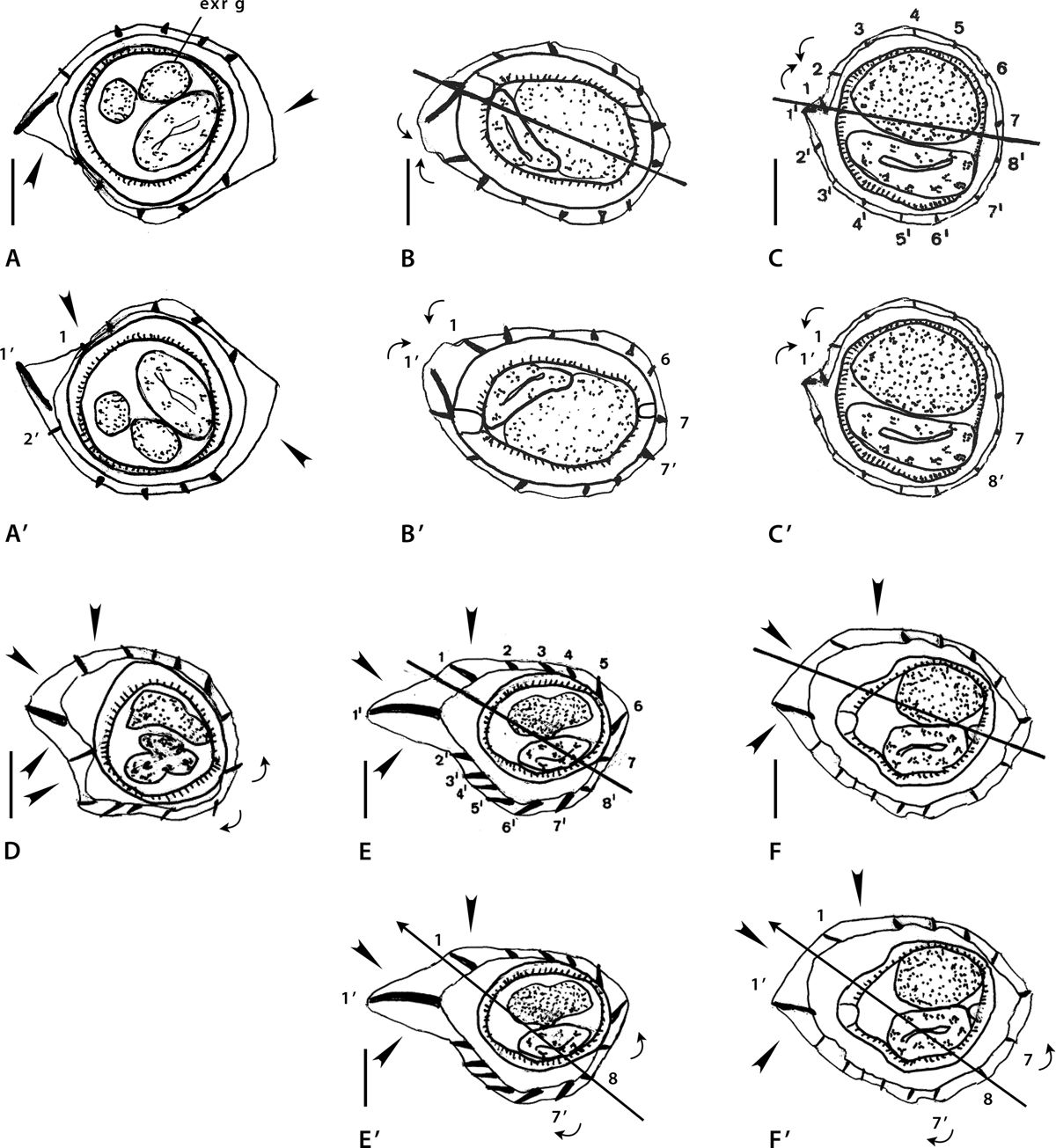

Genus Helgenema Smales, 2020. Body sections. A–C’ Helgenema keablei. A, A’ within proximal body, female. B–C’ at midbody. B, B’, male. C, C’ female. D–F’ Helgenema lamia Smales, 2021. D within proximal body, male. E–F’ at midbody. E, E’ male, F, F’, female. Sources: A–C redrawn from [43]. D–F redrawn from [44]. A’–C’, E’, F’ modified sections: A’ reversed on its frontal axis with respect to the original, B’ reversed on frontal axis then rotated ca. 15° clockwise with respect to the original. C’, E’, F’ re-numbering of ridges.
