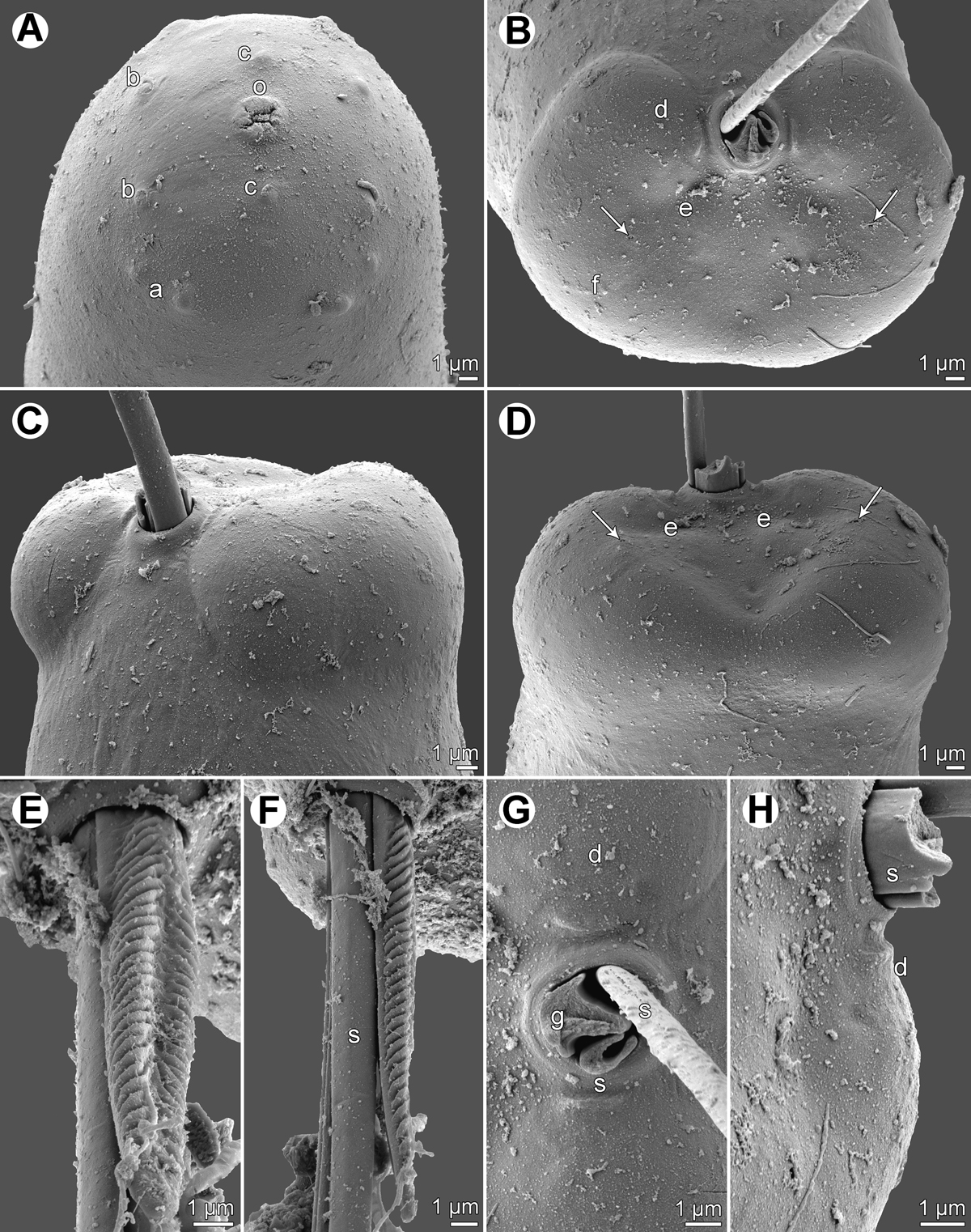

Philometra jordanoi (López-Neyra, 1951), scanning electron micrographs of male. A: Cephalic end, subapical view. B: Caudal end, apical view (arrows indicate phasmids). C: Same, sublateral view. D: Same, dorsal view (arrows indicate phasmids). E, F: Distal end of gubernaculum, dorsal and lateral views, respectively. G, H: Region of cloaca, ventral and dorsal views (distal ends of gubernaculum and one spicule broken-away). Abbreviations: a, submedian pair of external cephalic papillae; b, submedian cephalic papilla of internal circle; c, lateral cephalic papilla of internal circle; d, group of four adanal caudal papillae; e, large papilla posterior to cloaca; f, caudal mound; g, gubernaculum; o, oral aperture; s, spicule.
