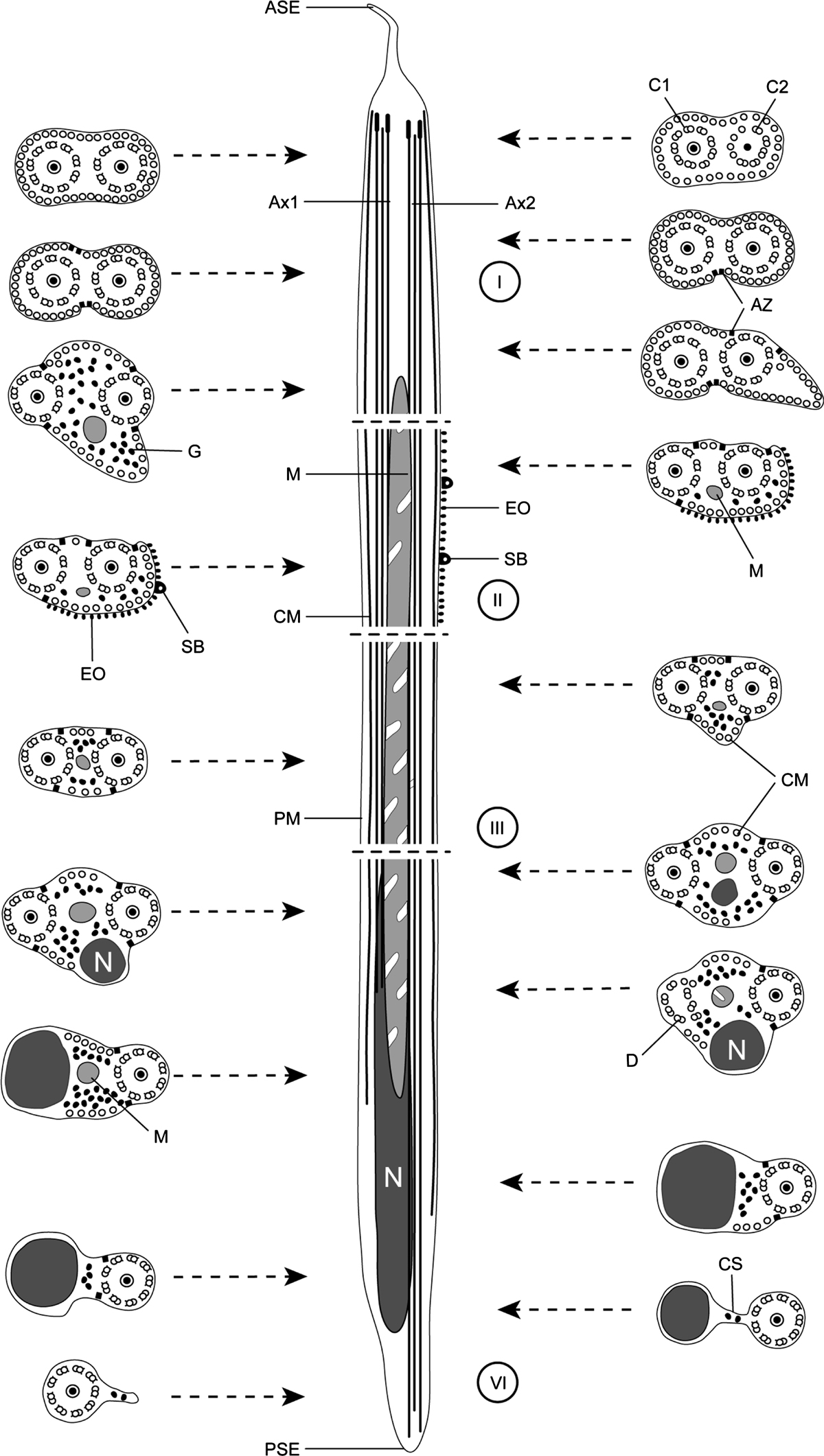

Schematic reconstruction of ultrastructural organisation of the mature spermatozoon of Collyricloides massanae. ASE, anterior spermatozoon extremity; Ax1, first axoneme; Ax2, second axoneme; AZ, attachment zones; C1, centriole of the first axoneme; C2, centriole of the second axoneme; CM, cortical microtubules; CS, cytoplasmic stalk; D, doublets; EO, external ornamentation of the plasma membrane; G, granules of glycogen; M, mitochondrion; N, nucleus; PM, plasma membrane; PSE, posterior spermatozoon extremity; SB, spine-like bodies.
