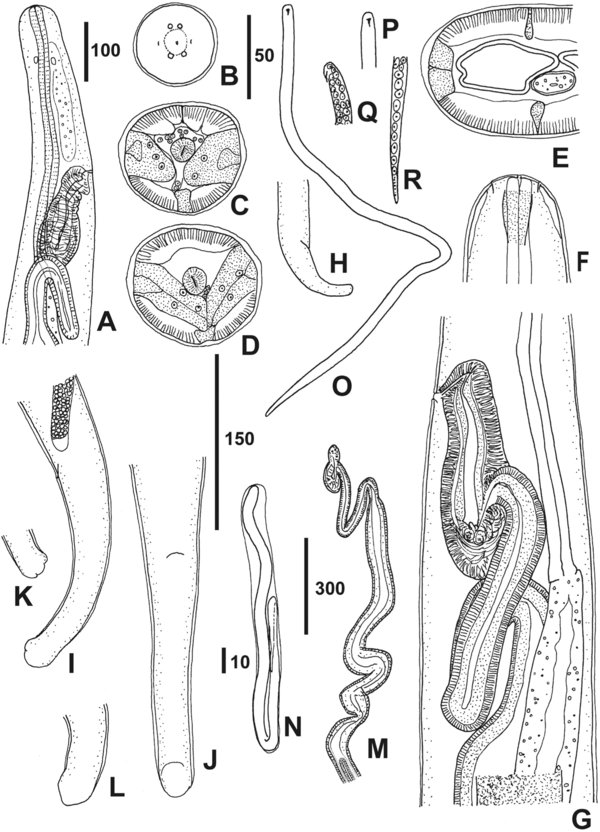

Fig. 1.

Download original image
Monanema joopi n. sp., female.
A, anterior region, right lateral view; B, head, in front view; C-E, three cross sections posterior to nerve ring, anterior to vulva, at midbody, respectively; F, anterior extremity, ventro-dorsal view; G, oesophageal-intestinal junction, vagina and anterior part of ovejector, left lateral view; H, tail, right lateral view; I & J, tails, left lateral view and ventral view, respectively; K & L, caudal extremities, right and left lateral views; M, ovejector and beginning of the two uteri, after dissection; N-R, microfilariae extracted from uteri; N, folded in sheath; O, exsheathed; P & Q, two anterior extremities with hook, dorso-ventral and left lateral view, respectively; R, last nuclei and granules at posterior extremity. Scales in μm: A, H, 100; B-F, I-L, 50; G, 150; M, 300; N-R 10.
